Secure, Compliant, Ready to Go

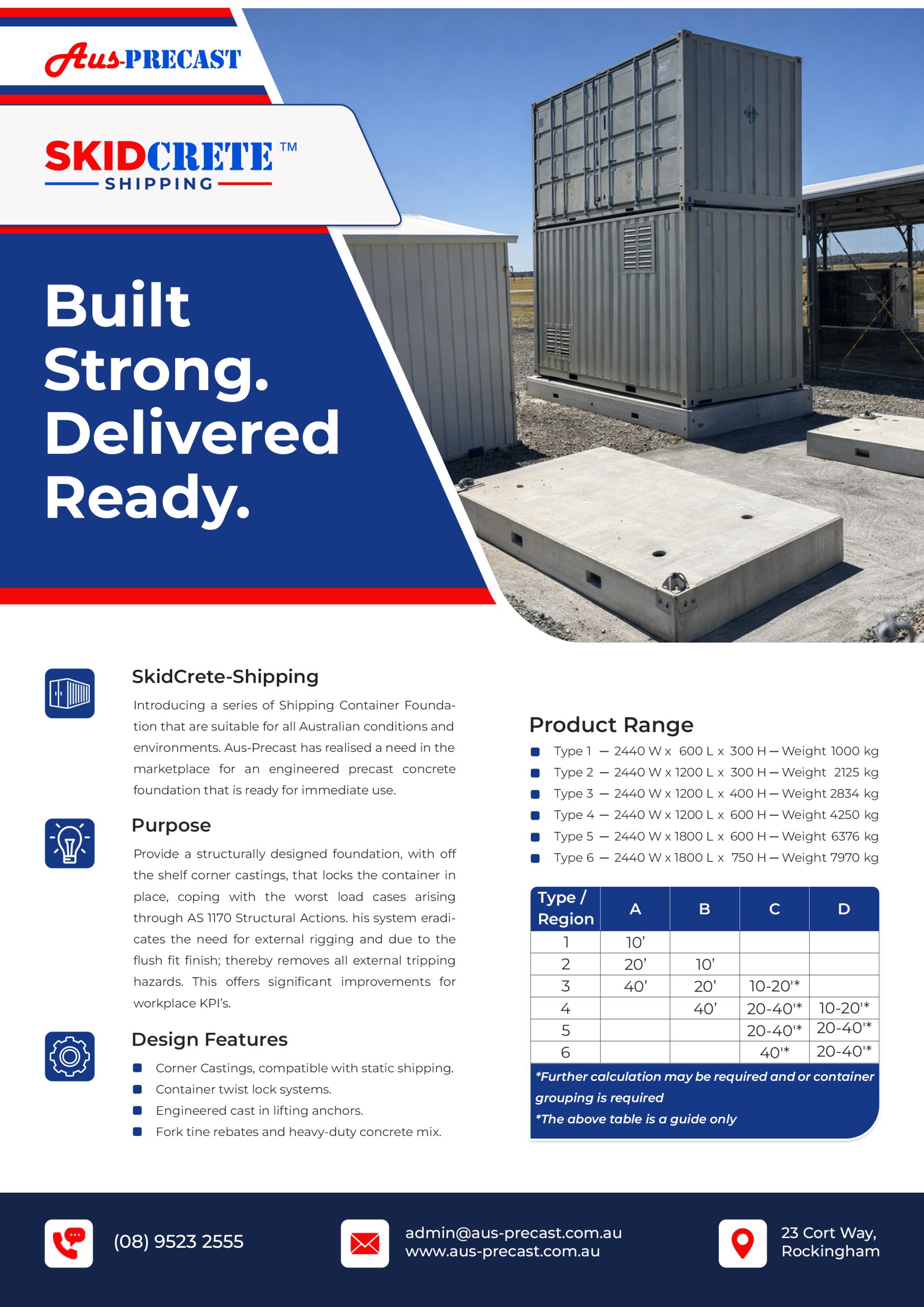

SkidCrete‑Shipping Base
Introducing a series of Shipping Container Foundations that are suitable for all Australian conditions and environments. Aus-Precast has realised a need in the marketplace for an engineered precast concrete foundation that is ready for immediate use.
Purpose
Provide a structurally designed foundation, with off the shelf corner castings, that locks the container in place, coping with the worst load cases arising through AS 1170 Structural Actions. This system eradicates the need for external rigging and due to the flush fit finish; thereby removes all external tripping hazards. This offers significant improvements for workplace KPI’s.
Design Features
Corner Castings, compatible with static shipping container twist lock systems. Engineered cast in lifting anchors Fork tine rebates and heavy-duty concrete mix
Range
Type 1 – 2440 W x 600 L x 300 H – Weight 1000kg
Type 2 – 2440 W x 1200 L x 300 H – Weight 2125kg
Type 3 – 2440 W x 1200 L x 400 H – Weight 2834kg
Type 4 – 2440 W x 1200 L x 600 H – Weight 4250kg
Type 5 – 2440 W x 1800 L x 600 H – Weight 6376kg
Type 6 – 2440 W x 1800 L x 750 H – Weight 7970kg
